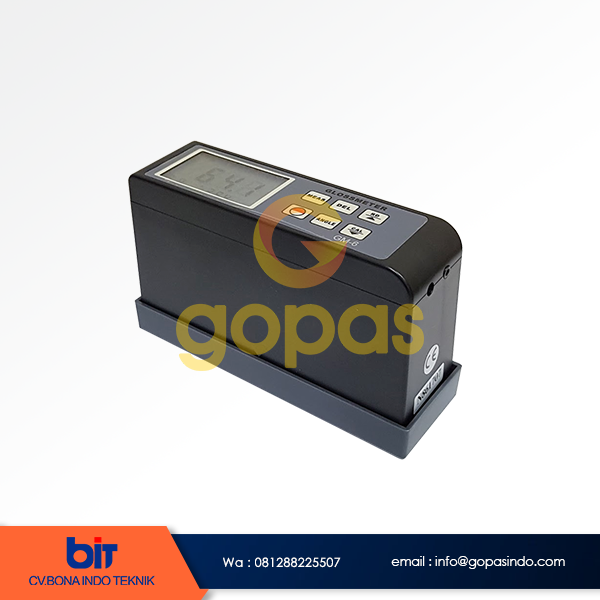

Gloss Meter GM 6
Rp 123
Deskripsi Produk
Applications
Surface gloss measurement
* Paint,baking varnish , coating , printing ink and other coating materials.
* Stone , ceramic tile,section bar and other building decoration materials.
* Paper , Bomboo wood , plastic , film and so on.
* Other kinds of metallic and non-metallic materials.
Features
* In accordance with international standard ASTMD523, ASTMD1455, ASTMC346, ASTMC584, ASTMD2457, DIN ENISO2813, DIN67530, ENISO7668, JISZ8741, MFT30064, TAPPIT480, GB9754, GB/T13891, GB7706 and GB8807.
Its technical parameters conform with JJG696-2002.
* Accurate measurement, good repetitiveness.
* Automatic calibration. Small in size, easy to carry.
* Intelligent design, rapid measurement.
* Able to store 254 groups of measurements.
* Applies USB, RS-232, Bluetooth data output.
* Built-in lithium ion rechargeable battery.
* Backlight display, suitable for low light environment.
Material and angle selection recommended :
* High gloss paint, printing ink, plastics, paper and other materials. Use the angle of 20⁰
* Middle gloss paint, printing ink, plastics, ceramics, marble and other materials. Use the angle of60⁰
* Low gloss paint, camounage coatings materials. Use the angle of 85⁰
Specifications :
Display : 4 Digits Backlit LCD
Measuring Angle : 60º
Range : 0.1~200 Gloss Units
Gloss Units : GU
Accuracy : ±1.0GU
Resoltuion : 0.1
Repeatability : ±0.5GU
Measuring Area : 7x14mm（Ellipse）
Data Memorized : 254 Groups
Operating Conditions : Temp:0~40ºC, Humidity:<85%RH
Power Supply : 3.7V Lithium Ion Rechargeable Battery
Dimensions : 140x45x75mm
Weight : 305g(Including Batteries)
Stabdard Accessories :
Main Unit
Holder with Calibration Standard
AC Adapter
Optical Cleaning Cloth
Carrying Case
Operation Manual
