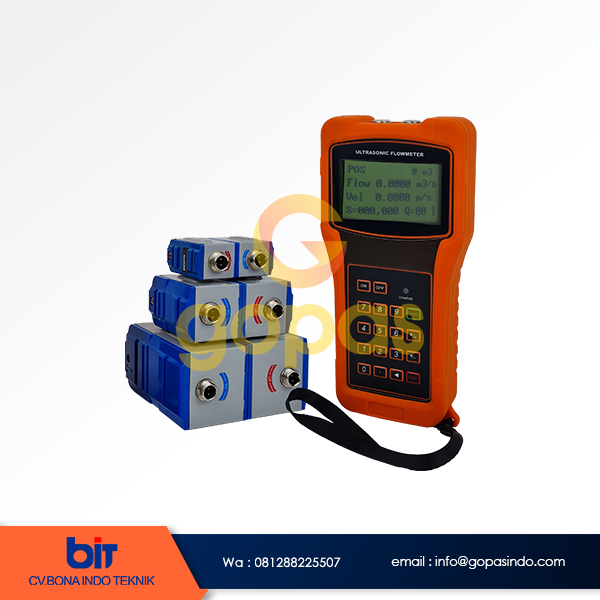

Ultrasonic Flow Meter TUF2000H
Rp 123
Deskripsi Produk
Ultrasonic Flow Meter TUF2000H
Principle: Transit time ultrasonic flowmeter
Accuracy: ± 1%
Display: 4×16 character LCD with backlight
Signal Output: 1 way OCT pulse output(Pulse width 6~1000ms, the defaultvalue is 200ms)
Data Interface: Insulate RS232 serial interface, upgrade the flowmeter software by computer
Pipe Material : Steel, Stainless Steel, Cast Iron, Copper, Cement pipe, PVC,Aluminum, Glass Steel product, liner is allowed.
Pipe Diameter : 15~6000mm (depends on transducer)
Straight Pipe : Transducer installation should be satisfied: upstream 10D,downstream 5D, 30D from the pump.
Type of Liquid : Single liquid can transmit sound wave, such as water, sewage, oil, chemicals, plant effluent, beverage, ultra-pure liquids, etc.
Temperature : -30~160°c
Turbidity : Less than 10000ppm and little bubble
Flowrate : 0 ~ ±7m/s
Temperature : main unit: -20~60°c; Transducer: -30~160°c
Humidity : main unit: 85%RH; Transducer protection level: IP67
Power Supply : 3 built-in Ni-MH batteries 1.2V (for over 12 hours of operation).Achieve to continuous measurement by connecting AC 90V - 260V adapter.
Power Consumption : 1.5W
Housing Material : Inflaming retarding ABS
Main unit Weight : 390g

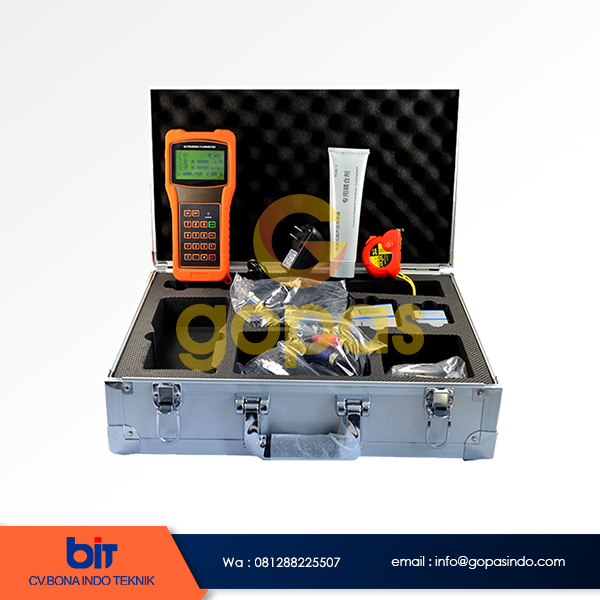

Standard packing:
1. Ultrasonic Flowmeter
2. TM-1 Transducer (DN 50-700 mm)
3. Signal cable
4. Data cable
5. Fixed steel chain
